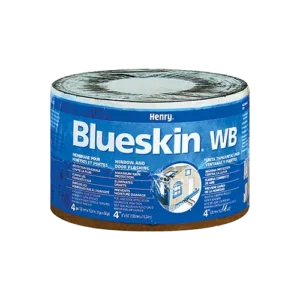

Blueskin WB Self-Adhered

Window and Door Flashing

Blueskin® WB Window and Door Flashing is a self-adhering membrane specifically designed to be self-adhered to a prepared substrate to protect against rain and moisture penetration, to prevent drafts and provide a weather tight seal.

Overview

Properties

Ideal Use	As a concealed self-adhered flashing against water, air, and moisture infiltration, to provide a weather-tight seal around fenestrations, joints in sheathing, and as a general flashing in residential and commercial construction
Building Component	Walls
Composition	Synthetic Butyl Hybrid
Ideal Substrates	Precast concrete, cast-in-place concrete, concrete block, brick, mortar, steel, aluminum mill finish, anodized aluminum, galvanized metal, coated metal, gypsum board, OSB, plywood, dimensional lumber, insulated concrete forms, polystyrene (EPS, XPS) foam board, and polyisocyanurate foam board
Surface Material	Synthetic Butyl Hybrid
Underface Material	White engineered polypropylene film
Application Type	Self-adhesive
Service Temperature	-40°C to 82°C (-40°F to 180°F)
UV Exposure	Up to 150 days
Restrictions	Designed for exposure of up to 150 days but is not designed for permanent exposure to ultraviolet light and should be covered as soon as practical after application

product line

Select any Product Code in the table below to view pricing and available stock.

CODE	ROLL SIZE	ROLL WEIGHT	MIN ORDER	ROLLS/SKID	UPC	GET PRICING
WB450	4" x 50 Ft.	4.2 lbs	12	324	694266999477	Add to Quote This product is already in your quote request list View Quote
WB650	6" x 50 Ft.	4.8 lbs	8	216	694266999422	Add to Quote This product is already in your quote request list View Quote
WB950	9" x 50 Ft.	7.1 lbs	4	144	694266999439	Add to Quote This product is already in your quote request list View Quote
WB1250	12" x 50 Ft.	8.2 lbs	4	108	081725096042	Add to Quote This product is already in your quote request list View Quote
WB1850	18" x 50 Ft.	12.9 lbs	-	84	081725064140	Add to Quote This product is already in your quote request list View Quote
WB3650	36" x 50 Ft.	28.6 lbs	-	42	081725046146	Add to Quote This product is already in your quote request list View Quote

documentation

Blueskin VP100 Self-Adhered

Air & Vapour Barrier Membrane

Redzone (40 Mil)

Air & Vapour Barrier Membrane

Redzone 25

Air & Vapour Barrier Membrane

Window and Door Flashing

Overview

Polypropylene
Film

SURFACE

Siliconized Release Film

UNDERFACE

35 Mils

THICKNESS

Features

Properties

Ideal Use	As a concealed self-adhered flashing against water, air, and moisture infiltration, to provide a weather-tight seal around fenestrations, joints in sheathing, and as a general flashing in residential and commercial construction
Building Component	Walls
Composition	Synthetic Butyl Hybrid
Ideal Substrates	Precast concrete, cast-in-place concrete, concrete block, brick, mortar, steel, aluminum mill finish, anodized aluminum, galvanized metal, coated metal, gypsum board, OSB, plywood, dimensional lumber, insulated concrete forms, polystyrene (EPS, XPS) foam board, and polyisocyanurate foam board
Surface Material	Synthetic Butyl Hybrid
Underface Material	White engineered polypropylene film
Application Type	Self-adhesive
Service Temperature	-40°C to 82°C (-40°F to 180°F)
UV Exposure	Up to 150 days
Restrictions	Designed for exposure of up to 150 days but is not designed for permanent exposure to ultraviolet light and should be covered as soon as practical after application

Documentation

Documents

PRODUCT LINE

Select any product code in the chart below to view pricing and available stock

CODE	ROLL SIZE	ROLL WEIGHT	MIN ORDER	ROLLS/SKID	UPC	GET PRICING
WB450	4" x 50 Ft.	4.2 lbs	12	324	694266999477	Add to Quote This product is already in your quote request list View Quote
WB650	6" x 50 Ft.	4.8 lbs	8	216	694266999422	Add to Quote This product is already in your quote request list View Quote
WB950	9" x 50 Ft.	7.1 lbs	4	144	694266999439	Add to Quote This product is already in your quote request list View Quote
WB1250	12" x 50 Ft.	8.2 lbs	4	108	081725096042	Add to Quote This product is already in your quote request list View Quote
WB1850	18" x 50 Ft.	12.9 lbs	-	84	081725064140	Add to Quote This product is already in your quote request list View Quote
WB3650	36" x 50 Ft.	28.6 lbs	-	42	081725046146	Add to Quote This product is already in your quote request list View Quote
