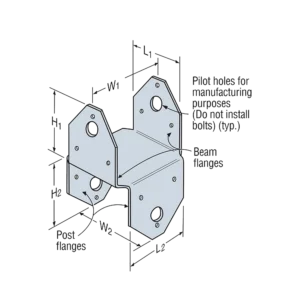

BC Post Cap

The BC post cap is designed to connect a beam to a post and provides uplift and lateral resistance.
  • Opposing flanges provide increased lateral resistance
  • Attains full allowable load using either common nail or pneumatic nail sizes
Ideal UseFor beam to post applications to provide uplift and lateral resistance
Material18 Gauge Galvanized (G90) Steel with ZMAX coating
RestrictionsUse only all specified fasteners. BEFORE INSTALLING PRODUCT, REFER TO LOAD VALUES AND READ ALL TECHNICAL DATA.

product chart

Product CodeGaugeNominal Post SizeW1W2L1L2H1H2Min. Order QTYUPC
BC4Z#184X3-9/16"3-9/16"2-7/8"2-7/8"3"3"40707392202608
BC6Z#186X5-1/2"5-1/2"4-3/8"4-3/8"3-3/8"3-3/8"10707392817505

LOAD VALUES

Product CodeFastenersAllowable Loads (LBS)
Beam FlangePost FlangeDF/SP (160)
UpliftLateral
BC4Z(6) 0.162 x 3-1/2(6) 0.162 x 3-1/26051000
BC6Z(12) 0.162 X 3-1/2(12) 0.162 X 3-1/211851825
SHOP ON E-COMMERCE
SHOP ON E-COMMERCE

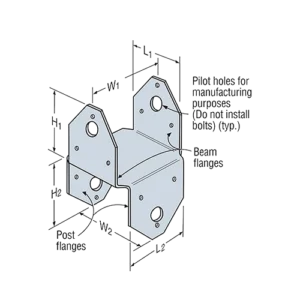

BC Post Cap

The BC post cap is designed to connect a beam to a post and provides uplift and lateral resistance.
  • Opposing flanges provide increased lateral resistance
  • Attains full allowable load using either common nail or pneumatic nail sizes
Ideal UseFor beam to post applications to provide uplift and lateral resistance
Material18 Gauge Galvanized (G90) Steel with ZMAX coating
RestrictionsUse only all specified fasteners. BEFORE INSTALLING PRODUCT, REFER TO LOAD VALUES AND READ ALL TECHNICAL DATA.

Select any product code in the chart below to view pricing and available stock

PRODUCT CODENOMINAL POST SIZEW1W2L1L2H1H2MIN. ORDERUPCGET PRICING

BC4Z

4X3-9/16"3-9/16"2-7/8"2-7/8"3"3"40707392202608
Add to Quote

BC6Z

6X5-1/2"5-1/2"4-3/8"4-3/8"3-3/8"3-3/8"10707392817505
Add to Quote
Product CodeFastenersAllowable Loads (LBS)
Beam FlangePost FlangeDF/SP (160)
UpliftLateral
BC4Z(6) 0.162 x 3-1/2(6) 0.162 x 3-1/26051000
BC6Z(12) 0.162 X 3-1/2(12) 0.162 X 3-1/211851825

Data from www.strongtie.com
