Galvanized Commercial Section Flanges

Sloped Sections

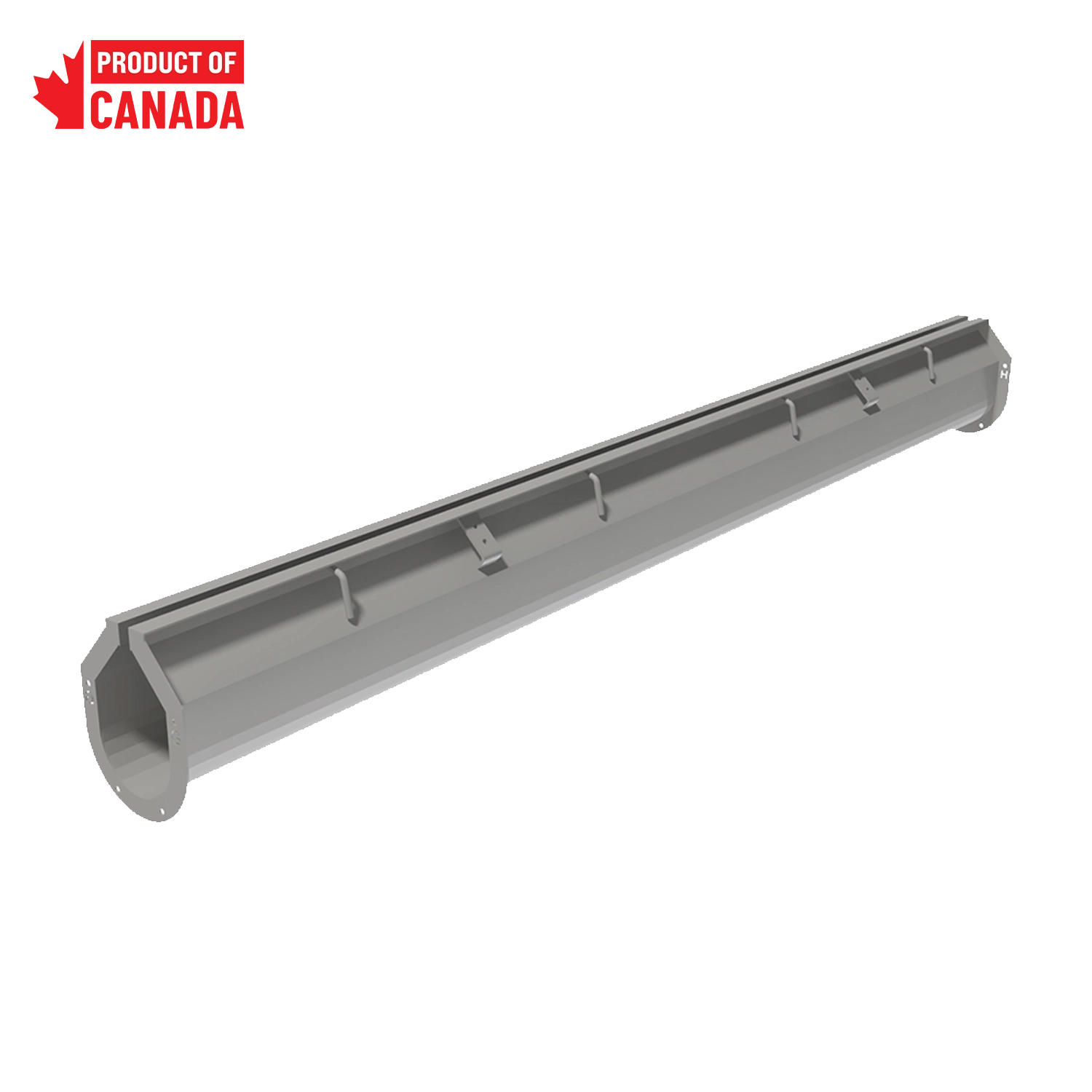

Commercial U-drain is a single slot intake trench drain designed to handle heavy traffic in applications such as heavy equipment shops, aircraft hangars, loading docks and more. The sloped section design effectively channels drainage to the sump pit over long distances with up to 150′ drain runs possible (non-sloped sections are available to help lengthen longer drain runs).

product line

Select any Product Code in the table below to view pricing and available stock.

PRODUCT CODECONFIGURATIONABCCONTENTSWEIGHTGET PRICING
END - A118"8.335"10.325"-98 lbs
A - B118"10.325"10.825"-98 lbs
B - C118"10.825"11.325"-103 lbs
C - D118"11.325"11.325"-105 lbs
D - E118"11.825"12.325"-109 lbs
F - G118"12.825"13.325"-111 lbs
G - G118"13.325"13.325"-112 lbs
G - H118"13.325"13.825"-113 lbs
H - I118"13.825"14.325"-115 lbs
Section Bolt Pack---(4) Bolts, (4) Nuts0.3 lbs
End Plate / Adapter Plate Pack---(4) EZ Anchors, (12) Bolts, (12) Nuts3.2 lbs

Galvanized Commercial Section Flanges

Sloped Sections

Commercial U-drain is a single slot intake trench drain designed to handle heavy traffic in applications such as heavy equipment shops, aircraft hangars, loading docks and more. The sloped section design effectively channels drainage to the sump pit over long distances with up to 150′ drain runs possible (non-sloped sections are available to help lengthen longer drain runs).

Benefits

product LINE

Select any Product Code in the table below to view pricing and available stock.

PRODUCT CODECONFIGURATIONABCCONTENTSWEIGHTGET PRICING
END – A118"8.335"10.325"98 lbs
A – B118"10.325"10.825"98 lbs
B – C118"10.825"11.325"103 lbs
C – D118"11.325"11.325"105 lbs
D – E118"11.825"12.325"109 lbs
F – G118"12.825"13.325"111 lbs
G – G118"13.325"13.325"112 lbs
G – H118"13.325"13.825"113 lbs
H – I118"13.825"14.325"115 lbs
Section Bolt Pack(4) Bolts, (4) Nuts0.3 lbs
End Plate / Adapter Plate Pack(4) EZ Anchors, (12) Bolts, (12) Nuts3.2 lbs

Galvanized Commercial Section Flanges

Sloped Sections
Commercial U-drain is a single slot intake trench drain designed to handle heavy traffic in applications such as heavy equipment shops, aircraft hangars, loading docks and more. The sloped section design effectively channels drainage to the sump pit over long distances with up to 150′ drain runs possible (non-sloped sections are available to help lengthen longer drain runs).

Benefits

Section DesignSloped: 1/2" of slope per 9 Ft. 10" Section
(0.05% over 10 Ft.)
MaterialGalvanized Steel
Live Load Capacity10,000 LBS (1,040 psi)
InstallationBolt-together system (bolts sold seperately) with EZ-mount leveling brackets

Select any product code in the chart below to view pricing and available stock

PRODUCT CODECONFIGURATIONABCCONTENTSWEIGHTGET PRICING
END - A118"8.335"10.325"-98 lbs
A - B118"10.325"10.825"-98 lbs
B - C118"10.825"11.325"-103 lbs
C - D118"11.325"11.325"-105 lbs
D - E118"11.825"12.325"-109 lbs
F - G118"12.825"13.325"-111 lbs
G - G118"13.325"13.325"-112 lbs
G - H118"13.325"13.825"-113 lbs
H - I118"13.825"14.325"-115 lbs
Section Bolt Pack---(4) Bolts, (4) Nuts0.3 lbs
End Plate / Adapter Plate Pack---(4) EZ Anchors, (12) Bolts, (12) Nuts3.2 lbs
