PRODUCT OVERVIEW

IUS I-Joist Hanger

With Snap-In Feature

Add to Quote

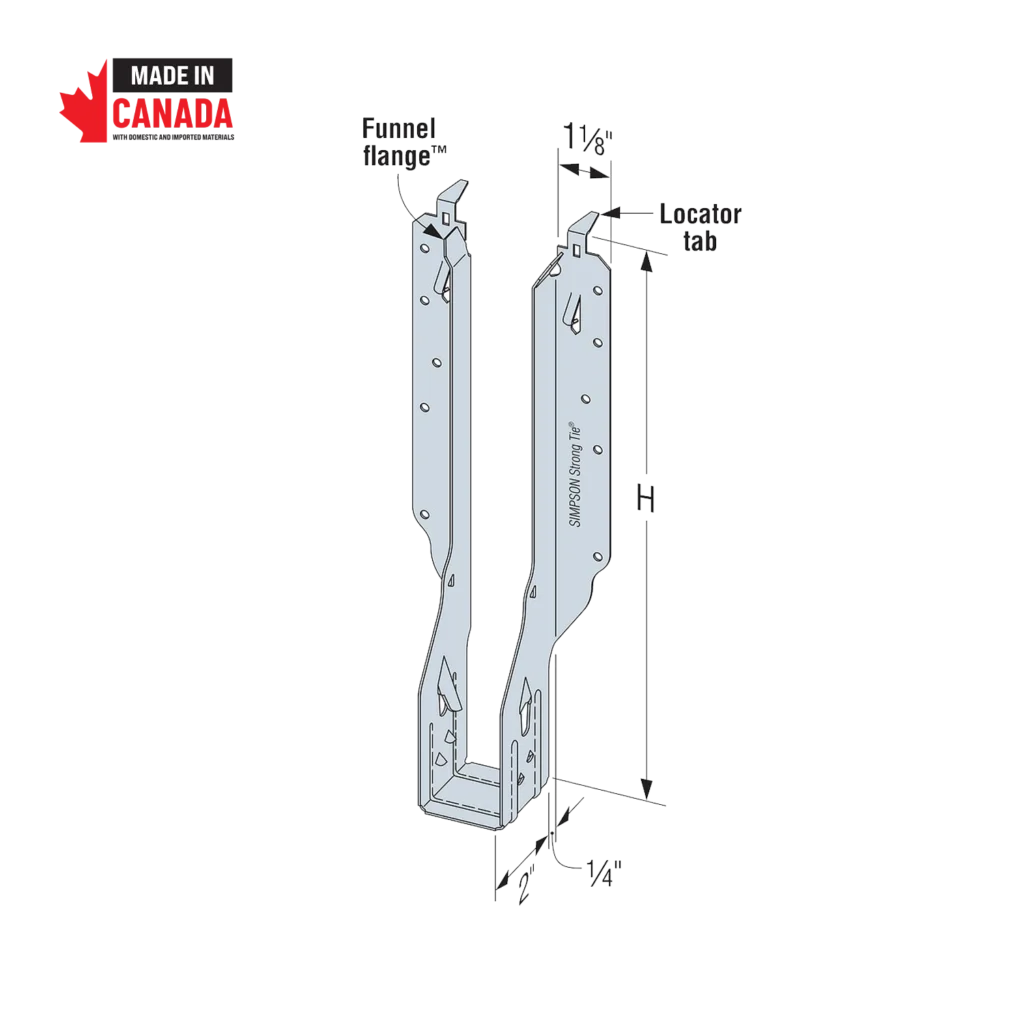

IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.
  • Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
  • Models will normally accommodate a skew of up to 5°
Ideal UseCommercial and high-load I-joist applications not requiring stiffeners
Material18 Gauge Galvanized Steel
View Documentation

Documents

SIMPSON STRONG-TIE Plated Truss Connectors – Install Guide (English)

LOAD VALUES

Product CodeFastenersAllowable Loads (LBS)
FaceJoistDF/SP Species HeaderSPF/HF Species Header
Uplift (160)Floor (100)Snow (115)Roof (125)Floor (100)Snow (115)Roof (125)
IUS2.37/9.5(8) 0.148 x 3-70950108011658159251000

related products

HGUS Series Heavy Girder Hanger
With Double-Shear Nailing
SHOP ON E-COMMERCE
BUY ONLINE

IUS I-Joist Hanger

With Snap-In Feature
IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.
  • Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
  • Models will normally accommodate a skew of up to 5°
Ideal UseCommercial and high-load I-joist applications not requiring stiffeners
Material18 Gauge Galvanized Steel
View Documentation

Documents

SIMPSON STRONG-TIE Plated Truss Connectors – Install Guide (English)

Select any product code in the chart below to view pricing and available stock

PRODUCT CODEGAUGEJOIST SIZEWIDTHHEIGHT(B) BASE DEPTHMIN. ORDERUPCGET PRICING

IUS2.37/9.5

182-5/16" x 9-1/2"2-7/16"9-1/2"2"25707392660408
Add to Quote
Product CodeFastenersAllowable Loads (LBS)
FaceJoistDF/SP Species HeaderSPF/HF Species Header
Uplift (160)Floor (100)Snow (115)Roof (125)Floor (100)Snow (115)Roof (125)
IUS2.37/9.5(8) 0.148 x 3-70950108011658159251000

Data from www.strongtie.com
