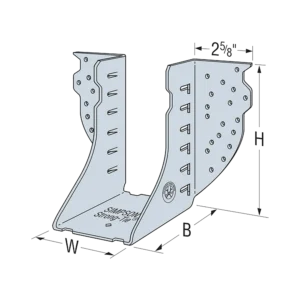

HGUS Series Heavy Girder Hanger

With Double-Shear Nailing

HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength.
  • Can be installed after the beam is secured in place
Ideal UseApplications that require a girder support
MaterialZinc Galvanized (G90) Steel
View Documentation

Documents

SIMPSON STRONG-TIE Plated Truss Connectors – Install Guide (English)

product chart

Product CodeHeightWidth(B) Base DepthGaugeMin. OrderUPC
HGUS28-27-3/16"3-5/16"4"#1212044315917301
HGUS210-29-3/16"3-5/16"4"#1212044315125102

LOAD VALUES

Product CodeStrong-Drive SD Connector ScrewsAllowable Loads (LBS)
JoistFaceDF/SPSPF/HF
Uplift (160)Floor (100)Snow (115)Roof (125)Uplift (160)Floor (100)Snow (115)Roof (125)
HGUS28-2(12) SD10212(36) SD1021218106460646064601560555555555555
HGUS210-2(16) SD10212(46) SD1021226658425842584252290724572457245

related products

IUS I-Joist Hanger
With Snap-In Feature
SHOP ON E-COMMERCE
SHOP ON E-COMMERCE

HGUS Series Heavy Girder Hanger

With Double-Shear Nailing
HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength.
  • Can be installed after the beam is secured in place
Ideal UseApplications that require a girder support
MaterialZinc Galvanized (G90) Steel
View Documentation

Documents

SIMPSON STRONG-TIE Plated Truss Connectors – Install Guide (English)

Select any product code in the chart below to view pricing and available stock

PRODUCT CODEGAUGEWIDTHHEIGHT(B) BASE DEPTHMIN. ORDERUPCGET PRICING

HGUS28-2

#123-5/16"7-3/16"4"12044315917301
Add to Quote

HGUS210-2

#123-5/16"9-3/16"4"12044315125102
Add to Quote
Product CodeStrong-Drive SD Connector ScrewsAllowable Loads (LBS)
JoistFaceDF/SPSPF/HF
Uplift (160)Floor (100)Snow (115)Roof (125)Uplift (160)Floor (100)Snow (115)Roof (125)
HGUS28-2(12) SD10212(36) SD1021218106460646064601560555555555555
HGUS210-2(16) SD10212(46) SD1021226658425842584252290724572457245

Data from www.strongtie.com
