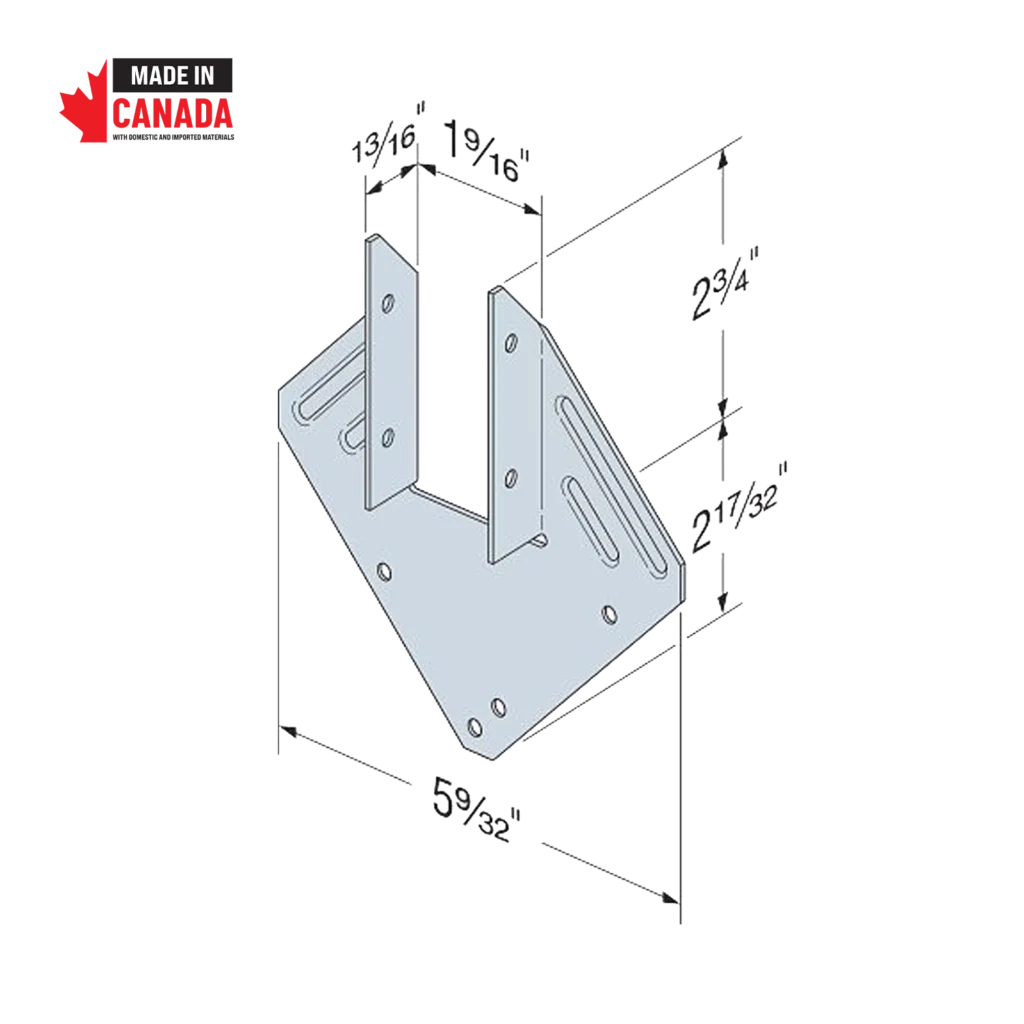

H1A Hurricane Tie

H1A provides a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces. These U-shaped hurricane ties provide faster installation than using two single-sided ties.
  • Holds the rafter or truss on both sides for high lateral load resistance
  • Can be installed on inside or outside of wall, or both sides
Ideal UseProvides a connection between the truss or rafter and the wall of the structure to help resist wind and seismic forces
Approved for use with Strong-Drive #9 SD Connector Screws
Material18 Gauge Galvanized (G90) Steel
RestrictionsBEFORE INSTALLING PRODUCT, REFER TO LOAD VALUES AND READ ALL TECHNICAL DATA.

product chart

Product CodeMaterial / CoatingGaugeMin. OrderUPC
H1AG90 Zinc Galvanized#18100707392019695
H1AZZMAX#18100707392019701

LOAD VALUES

Product CodeStrong Drive #9 Connector ScrewsDF / SP Allowable Loads (LBS)SPF/HF Allowable Loads (LBS)
To Rafters / TrussTo Plates / BaseUpliftLateralUpliftLateral
(160)F1 F2 (160)F1F2
H1A(Z)(4) SD9112(4) SD9112655550300565475300
SHOP ON E-COMMERCE
BUY ONLINE

H1A Hurricane Tie

H1A provides a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces. These U-shaped hurricane ties provide faster installation than using two single-sided ties.
  • Holds the rafter or truss on both sides for high lateral load resistance
  • Can be installed on inside or outside of wall, or both sides
Ideal UseProvides a connection between the truss or rafter and the wall of the structure to help resist wind and seismic forces
Approved for use with Strong-Drive #9 SD Connector Screws
Material18 Gauge Galvanized (G90) Steel
RestrictionsBEFORE INSTALLING PRODUCT, REFER TO LOAD VALUES AND READ ALL TECHNICAL DATA.

Select any product code in the chart below to view pricing and available stock

PRODUCT CODEMATERIAL / COATINGGAUGEMIN. ORDERUPCGET PRICING

H1A

G90 Zinc Galvanized18100707392019695
Add to Quote

H1AZ

ZMAX18100707392019701
Add to Quote
Product CodeStrong Drive #9 Connector ScrewsDF / SP Allowable Loads (LBS)SPF/HF Allowable Loads (LBS)
To Rafters / TrussTo Plates / BaseUpliftLateralUpliftLateral
(160)F1 F2 (160)F1F2
H1A(Z)(4) SD9112(4) SD9112655550300565475300

Data from www.strongtie.com
