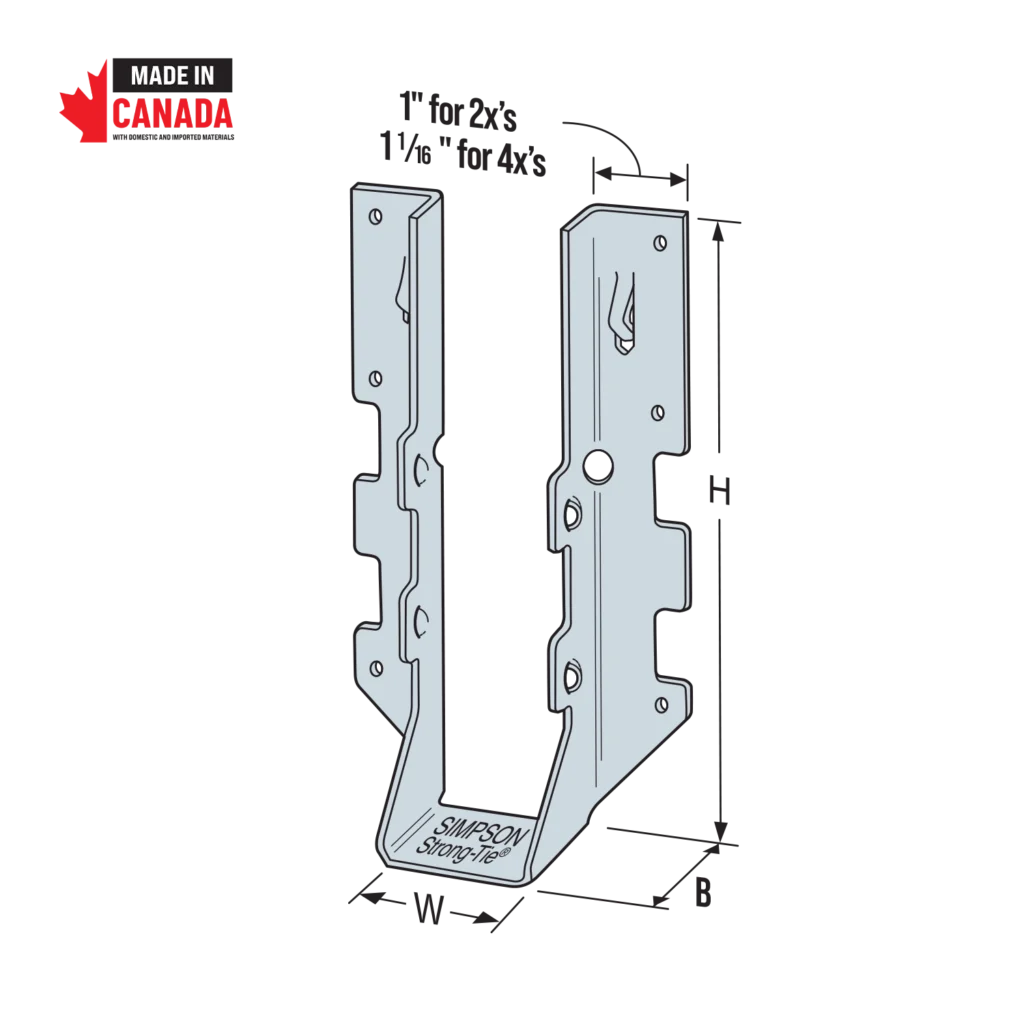

| Ideal Use | For end of ledger/header or post structures designed to provide support underneath the joist, rafter or beam |
|---|---|
 | Approved for use with Strong-Drive #9 SD Connector Screws |
| Material | Zinc Galvanized (G90) Steel |
product chart
| Product Code | Min. Heel Height | Coating / Material | Gauge | Width | Height | (B) Base Depth | Min. Order | UPC | |
|---|---|---|---|---|---|---|---|---|---|
| LUS24Z | 2-5/8" | ZMAX | 18 | 1-9/16" | 3-1/8" | 1-3/4" | 100 | 044315804304 | |
| LUS26Z | 4-1/4" | ZMAX | 18 | 1-9/16" | 4-3/4" | 1-3/4" | 100 | 044315734403 | |
| LUS28Z | 4-3/16" | ZMAX | 18 | 1-9/16" | 6-5/8" | 1-3/4" | 50 | 044315268700 | |
| LUS210 | 4-1/4" | Zinc Galvanized (G90) | 18 | 1-9/16" | 7-13/16" | 1-3/4" | 50 | 044315684005 | |
| LUS210Z | 4-1/4" | ZMAX | 18 | 1-9/16" | 7-13/16" | 1-3/4" | 25 | 044315000607 | |
| LUS26-2Z | 2-1/4" | ZMAX | 18 | 3-1/8" | 4-7/8" | 2" | 25 | 044315271908 | |
| LUS28-2Z | 4-9/16" | ZMAX | 18 | 3-1/8" | 7" | 2" | 25 | 044315572302 | |
| LUS210-2Z | 6-7/16" | ZMAX | 18 | 3-1/8" | 9" | 2" | 25 | 044315250804 | |
| LUS28-3Z | 6-13/16" | ZMAX | 18 | 4-15/16" | 7-1/4" | 4" | 15 | 707392970309 | |
| LUS210-3Z | 6-1/4" | ZMAX | 18 | 4-5/8" | 6-1/4" | 2" | 25 | 707392185505 |
LOAD VALUES
| Product Code | Strong-Drive #9 SD Connector Screws | Allowable Loads (LBS) | ||||||||
| Header | Joist | DF/SP | SPF/HF | |||||||
| Uplift (160) | Floor (100) | Snow (115) | Roof (125) | Uplift (160) | Floor (100) | Snow (115) | Roof (125) | |||
| LUS24 | (4) SD9112 | (2) SD9212 | 495 | 870 | 1000 | 1085 | 425 | 605 | 695 | 755 |
| LUS26 | (4) SD9112 | (4) SD9212 | 1180 | 1055 | 1210 | 1315 | 1015 | 760 | 875 | 950 |
| LUS28 | (6) SD9112 | (4) SD9212 | 1335 | 1395 | 1570 | 1570 | 1130 | 985 | 1135 | 1230 |
| LUS210 | (8) SD9112 | (4) SD9212 | 1240 | 1735 | 1995 | 2170 | 1065 | 1210 | 1390 | 1510 |
| LUS26-2 | (4) SD9112 | (4) SD9212 | 1180 | 1055 | 1210 | 1315 | 1015 | 735 | 845 | 920 |
| LUS28-2 | (6) SD9112 | (4) SD9212 | 1335 | 1395 | 1570 | 1570 | 1100 | 960 | 1105 | 1200 |
| LUS210-2 | (8) SD9112 | (6) SD9212 | 1240 | 1920 | 2210 | 2400 | 1065 | 1325 | 1525 | 1660 |
| LUS28-3 | (6) SD9112 | (4) SD9212 | 1335 | 1395 | 1570 | 1570 | 1100 | 960 | 1105 | 1200 |
| LUS210-3 | (8) SD9112 | (6) SD9212 | 1240 | 1735 | 1995 | 2170 | 1065 | 1185 | 1360 | 1480 |
